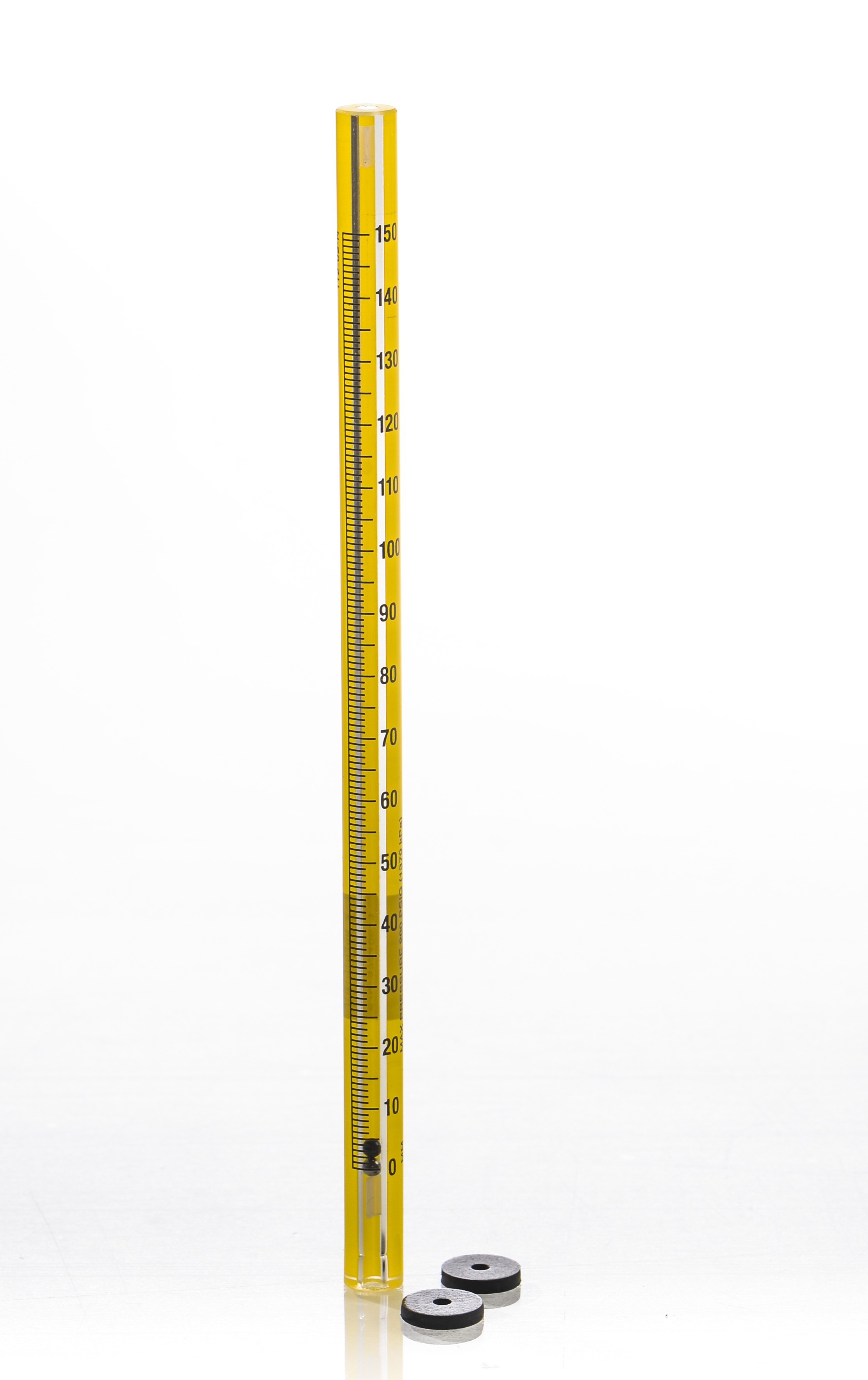

Riteflow PTFE Mounted Flowmeters
High Chemical Resistance & Purity
This flowmeter measures flow in the lab, process flows in pilot plants, carrier gases in chromatography, and flow rates in pumping or flow systems.
- Heavy-walled, shock-resistant borosilicate glass operates at pressures up to 100 psig and temperatures up to 65.5 °C (150 °F)
- Fused ceramic scale is accurate to within ±2% of full scale, with 0.25% repeatability
- Uniformly tapered bore with internal rib guides stabilizes the glass, stainless steel, or carboloy float
- Black anodized aluminum frame with an exclusive tube-lock prevents turning; magnifying window runs the length of the scale for easy reading
- PTFE fittings offer high chemical resistance and purity, with 9.5 mm (0.38″) straight glass connectors and PTFE and Kel-F® valves
Note: The Riteflow™ PTFE mounted flowmeter is shown on a Leveling Base Kit (H40404-1000), sold separately.
Product Variants
| Catalog No. | Dimensions (L x W) | Quantity / Pack | Where to Buy |
|---|---|---|---|
| H40404-0010 | 15.9 x 3.2 cm (6.25 x 1.25") | 1 | Find a Distributor |
