Buchner Table-Top Funnels

Filter Large Volumes Quickly

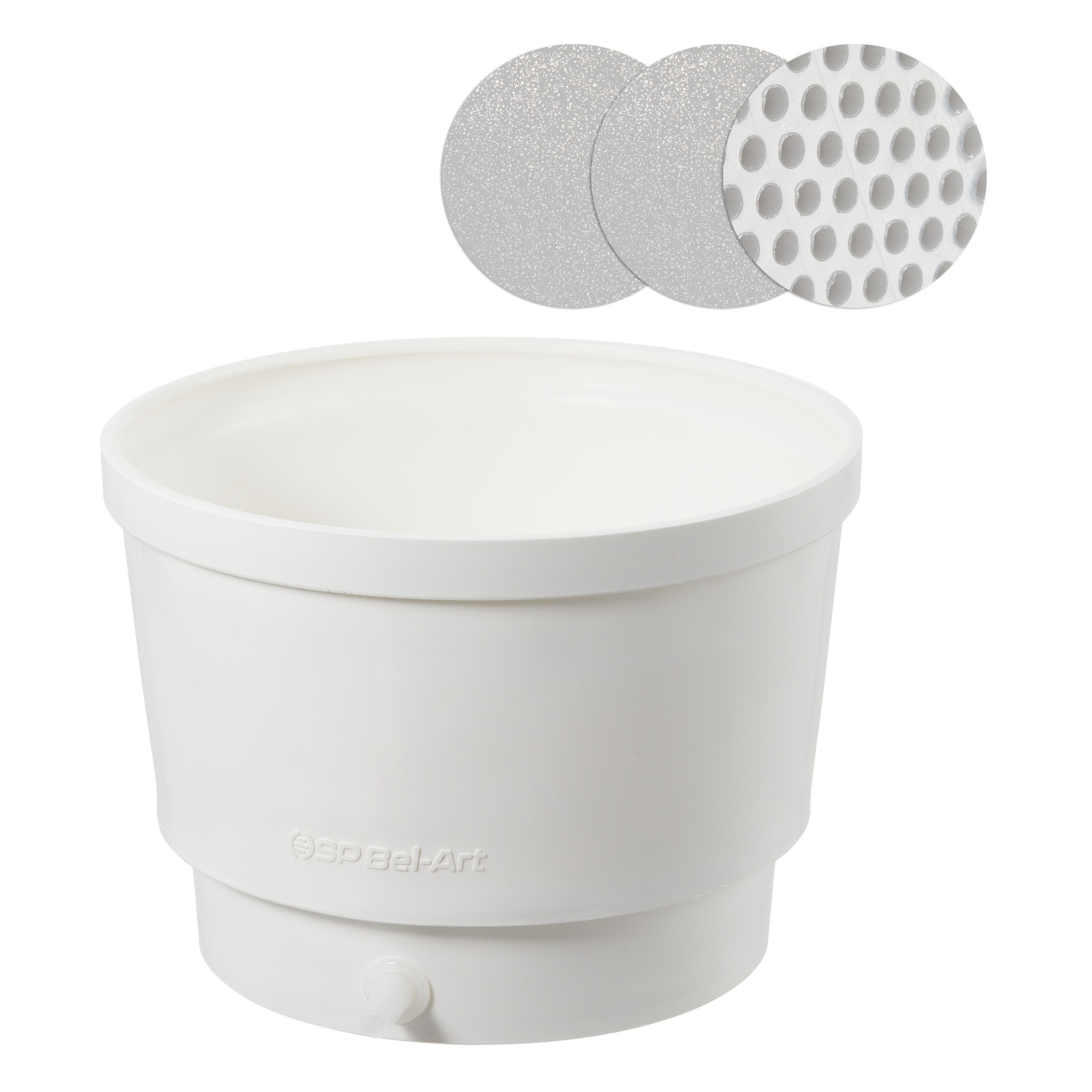

Filter large volumes quickly with a polyethylene plastic Table-Top Buchner Funnel using your choice of Fritware® or Perforated filter plate.
Removable hose barbed connector accepts 12.7mm (½") I.D. tube and threads into ¾" NPT bung on the funnel
Fixed or removable Fritware® Porous Filter Plates supported by a multiple ring grid; HDPE, 6.4mm (¼") thick, with a non-porous ring at the periphery of the plate which seals filter paper when used
Fritware® Porous Filter Plates available in two porosities (medium and coarse); medium is 45-90 microns while the coarse is 90-130 microns; use temperature range maximum 52ºC (125ºF), minimum -80ºC (-112ºF)
Fixed or removable Perforated Filter Plates are made of 4.8mm (³/₁₆") thick HDPE with 4.8mm (³/₁₆") perforations on 11mm (⁷/₁₆") centers
Perforated Filter Plates available in two versions (fixed or removable); fixed for coarse filtration or use with a cloth or paper filter; removable for use in precious metals recovery; use temperature range maximum 52ºC (125ºF), minimum -80ºC (-112ºF)
Use the F36820-0118 Funnel Trowel to quickly and efficiently smooth fissures appearing during the filtration process
Note: Truck shipping is required for 36" funnels
Catalog No.: Description Overall Height Rim To Plate Quantity / Pack

10.25" (26cm) Funnel Inside Diameter
H14620-0000 Funnel with Coarse Porosity Fixed Plate (10.25") 8" (20.3cm) 5" (12.7cm) 1
H14620-1260 Funnel with Coarse Porosity Removable Plate (10.25") 8" (20.3cm) 5" (12.7cm) 1
H91462-4026 Replacement Coarse Porous Plate (10.25") 1
H14625-3510 Funnel with Medium Porosity Fixed Plate (10.25") 8" (20.3cm) 5" (12.7cm) 1
H14626-3510 Funnel with Medium Porosity Removable Plate (10.25") 8" (20.3cm) 5" (12.7cm) 1
H91462-4326 Replacement Medium Porous Plate (10.25") 1
H14627-0000 Funnel with Perforated Fixed Plate (10.25") 8" (20.3cm) 5" (12.7cm) 1
H14627-1260 Funnel with Perforated Removable Plate (10.25") 8" (20.3cm) 5" (12.7cm) 1
H91463-1260 Replacement Perforated Plate (10.25") 1

18" (45.7cm) Funnel Inside Diameter
H14621-0000 Funnel with Coarse Porosity Fixed Plate (18") 11.5" (29.2cm) 8" (20.3cm) 1
H14621-1457 Funnel with Coarse Porosity Removable Plate (18") 11.5" (29.2cm) 8" (20.3cm) 1
H91462-4457 Replacement Coarse Porous Plate (18") 1
H14625-3518 Funnel with Medium Porosity Fixed Plate (18") 11.5" (29.2cm) 8" (20.3cm) 1
H14626-3518 Funnel with Medium Porosity Removable Plate (18") 11.5" (29.2cm) 8" (20.3cm) 1
H91462-4345 Replacement Medium Porous Plate (18") 1
H14628-0000 Funnel with Perforated Fixed Plate (18") 11.5" (29.2cm) 8" (20.3cm) 1
H14627-1457 Funnel with Perforated Removable Plate (18") 11.5" (29.2cm) 8" (20.3cm) 1
H91463-1457 Replacement Perforated Plate (18") 1

24" (61cm) Funnel Inside Diameter
H14622-0000 Funnel with Coarse Porosity Fixed Plate (24") 13" (33cm) 10.25" (26.7cm) 1
H14622-1610 Funnel with Coarse Porosity Removable Plate (24") 13" (33cm) 10.25" (26.7cm) 1
H91462-4610 Replacement Coarse Porous Plate (24") 1
H14625-3524 Funnel with Medium Porosity Fixed Plate (24") 13" (33cm) 10.25" (26.7cm) 1
H14626-3524 Funnel with Medium Porosity Removable Plate (24") 13" (33cm) 10.25" (26.7cm) 1
H91462-4361 Replacement Medium Porous Plate (24") 1
H14629-0000 Funnel with Perforated Fixed Plate (24") 13" (33cm) 10.25" (26.7cm) 1
H14627-1610 Funnel with Perforated Removable Plate (24") 13" (33cm) 10.25" (26.7cm) 1
H91463-1610 Replacement Perforated Plate (24") 1

36" (91.4cm) Funnel Inside Diameter
H14623-0000 Funnel with Coarse Porosity Fixed Plate (36") 14.75" (37.5cm) 12" (30.5cm) 1
H14623-1914 Funnel with Coarse Porosity Removable Plate (36") 14.75" (37.5cm) 12" (30.5cm) 1
H91462-4091 Replacement Coarse Porous Plate (36") 1
H14625-3536 Funnel with Medium Porosity Fixed Plate (36") 14.75" (37.5cm) 12" (30.5cm) 1
H14626-3536 Funnel with Medium Porosity Removable Plate (36") 14.75" (37.5cm) 12" (30.5cm) 1
H91462-4914 Replacement Medium Porous Plate (36") 1
H14630-0000 Funnel with Perforated Fixed Plate (36") 14.75" (37.5cm) 12" (30.5cm) 1
H14627-1914 Funnel with Perforated Removable Plate (36") 14.75" (37.5cm) 12" (30.5cm) 1
H91463-1914 Replacement Perforated Plate (36") 1
