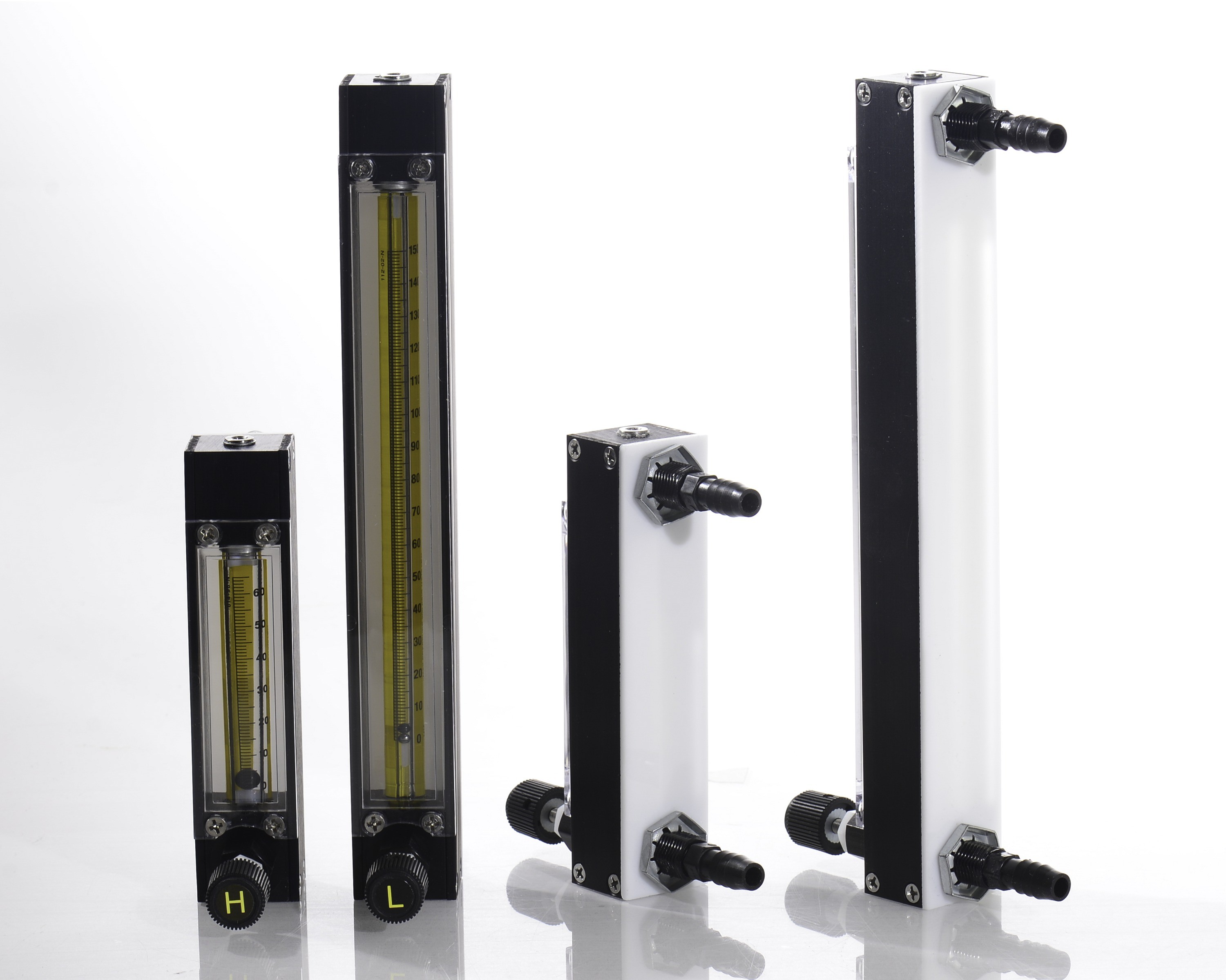

Riteflow Aluminum Mounted Flowmeters

These flowmeters measure flow in the lab, process flows in pilot plants, carrier gases in chromatography, and flow rates in pumping or flow systems.

• Heavy-walled, shock-resistant borosilicate glass operates at pressures up to 200 psig and temperatures up to 121 °C (250 °F)
• Fused ceramic scales are accurate to within ±2% of full scale, with 0.25% repeatability
• Uniformly tapered bores with internal rib guides stabilize the glass, stainless steel, or carboloy floats
• Black anodized aluminum frame with an exclusive tube-lock prevents turning; magnifying window runs the length of the scale for easy reading
• Has economical aluminum fittings with Buna-N, 316 stainless steel, and Delrin® valves; hose barbs accept 8 to 9.5 mm (0.31 to 0.38″) I.D. tubing and remove for use with female 3.2 mm (0.13″) NPT fittings

Note: The Riteflow™ mounted flowmeter is shown on a Leveling Base Kit (H40404-1000), sold separately.
