Bel-Art Micro-Mill Grinder Replacement Blade; Stellite-Faced

With Interchangeable Grinding Chambers

For rapid, high-speed grinding of small samples from 20 to 50ml. Stainless steel or hard-faced blade rotates at speeds up to 12,000 rpm to successfully grind bauxite, bone, ceramics, coal, Devarda’s alloy, fertilizer, filter paper, fly ash, frozen tissue, glass, grain, kaolinites, leaves, limestone, pharmaceuticals, pigment blends, plastics, rocks, roots, shale, seeds, slags, soil, teeth, wood, etc. To provide safety and prevent sample loss, the grinder operates only when the cover is latched in place. Supplied with a 1.8M (6ft) 3-wire cord and grounded plug. Three models available.
⅕ horsepower (150 Watts) motor develops a torque of 2.2 kg-cm (30 oz-inches) at 12,000 rpm
Temperature is maintained by means of built-in heat exchangers
Control panel has an overload protection reset button and a pilot light
Tubing connections 6.4mm (¼”) on the cover and housing accept tubes for circulating water or slurry
Cover, grinding assembly and milling blade head are removable for cleaning
Stainless steel chamber is 54mm diam x 25mm deep (2⅛ x 1”) inside an aluminum housing with an epoxy finish and non-skid rubber feet
Overall dimensions: 14 x 18 x 28cm high (5½ x 7 x 11”); shipping weight: 6.4 kg (14lbs)
Micro-Mill Grinders: Image: CA Prop 65 Warning  WARNING:  Cancer  www.P65Warnings.ca.gov
Stainless Steel Replacement Blade and Hard-Faced Accessory Blade: Image: CA Prop 65 Warning  WARNING:  Cancer and Reproductive Harm  www.P65Warnings.ca.gov
Catalog No.: Description Quantity / Pack

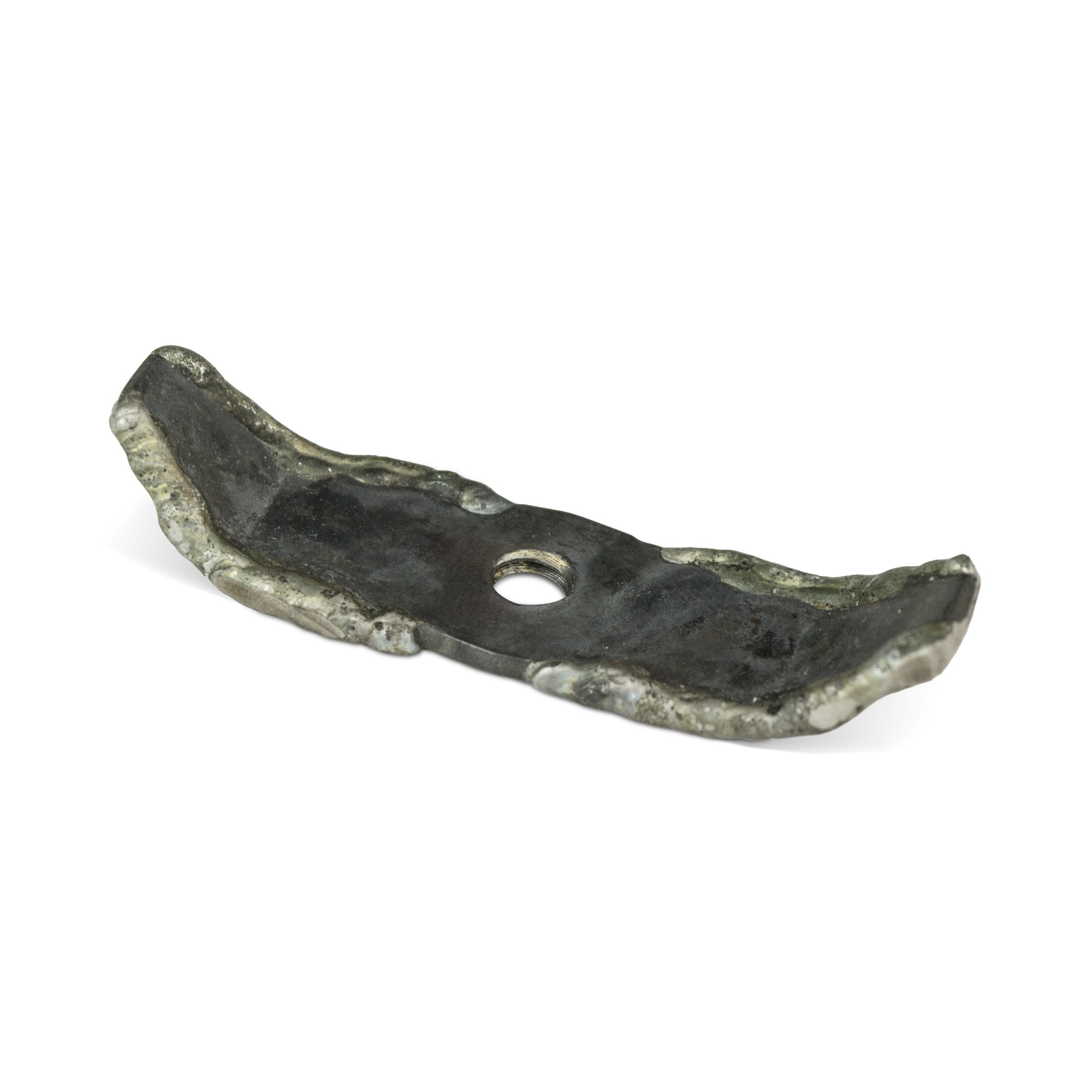

Micro-Mill Grinder® Hard-Faced Blade - For H37254. Stellite-faced blades for grinding samples up to hardness of stellite 6.
H37258-0000 Hard-Faced Accessory Blade 1
