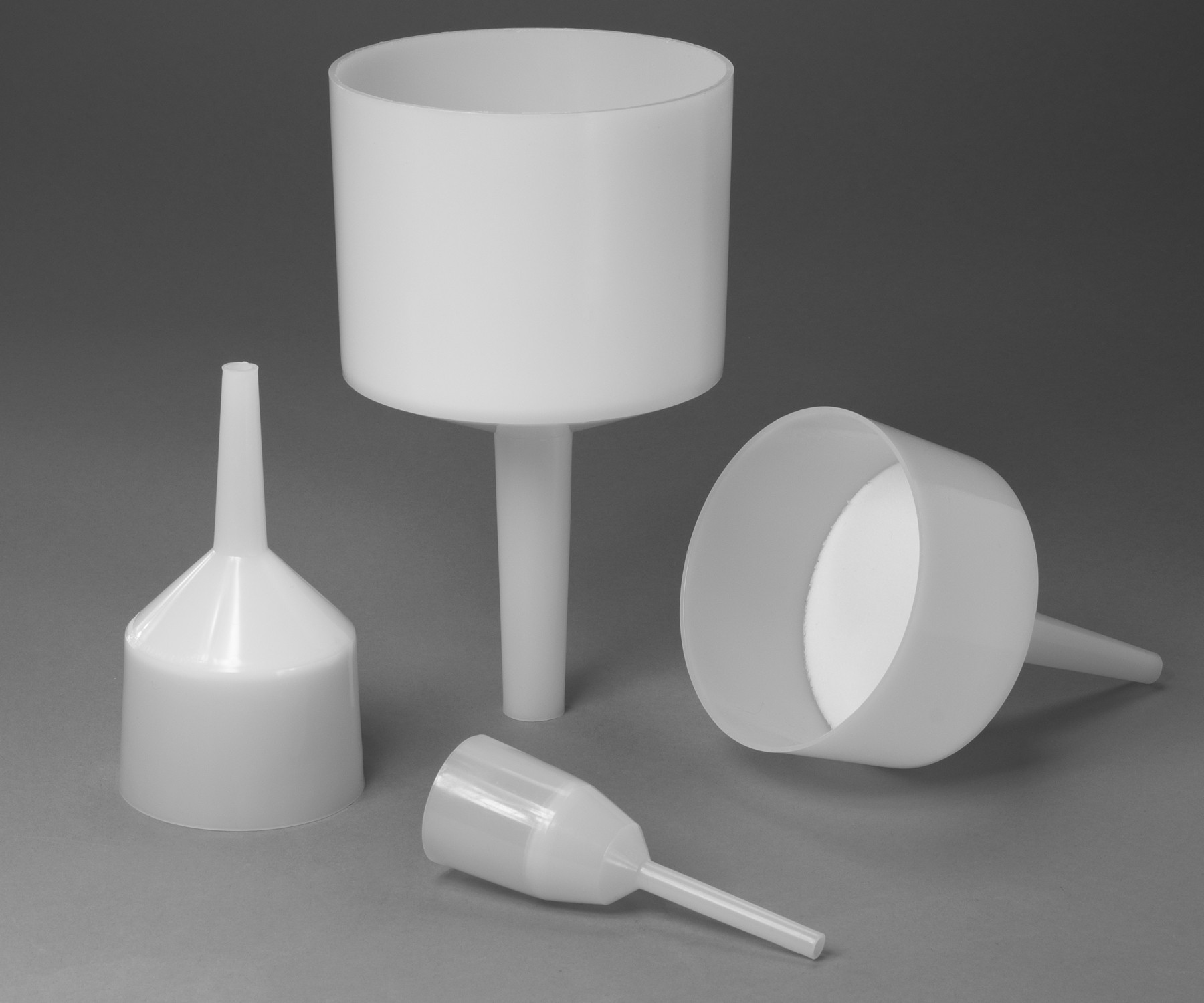

Buchner Funnels – Single Piece

Double click on above image to view full picture

Zoom Out
Zoom In

Buchner Funnels – Single Piece

Fast Flowing with Fritware® Porous Plates

One piece HDPE plastic funnels with sealed-in, polyethylene filter plate of coarse porosity (90-130 microns) offer good retention and fast flow under vacuum.
Can be used with or without filter paper
For use below 52ºC (125ºF)
Use with Vac-Ring Filter Seal (H38959-0000) for quick filter setup
Catalog No.: Capacity Overall Height Stem I.d. Stem O.d. Top I.d. Top O.d. Stem Length Plate Diameter Rim To Plate Quantity / Pack
F14608-0000 50ml (1.69 oz) 12.7cm (5") 0.6cm (¼") 0.9cm (⅜") 4cm (1⁹⁄₁₆") 4.2cm (1⅝") 6.1cm (2⅜") 3.6cm (1⁷⁄₁₆") 4.1cm (1⅝") 1
F14609-0000 150ml (5.07 oz) 14.0cm (5½") 0.8cm (⁵⁄₁₆") 1.7cm (⅝") 7.6cm (3") 8.1cm (3³⁄₁₆") 6.0cm (2⅜") 7.0cm (2¾") 5.1cm (2") 1
F14610-0000 400ml (13.5 oz) 17.6cm (6¹⁵⁄₁₆") 0.8cm (⁵⁄₁₆") 1.8cm (¾") 10.8cm (4¼") 11.3cm (4⁷⁄₁₆") 7.1cm (2¹³⁄₁₆") 10.4cm (4⅛") 5.3cm (2⅛") 1
F14611-0000 1000ml (33.8 oz) 22.7cm (8¹⁵⁄₁₆") 1.7cm (¹¹⁄₁₆") 2.4cm (¹⁵⁄₁₆") 12.7cm (5") 13.2cm (5³⁄₁₆") 10.0cm (3¹⁵⁄₁₆") 12.2cm (4¹³⁄₁₆") 9.4cm (3¹¹⁄₁₆") 1
