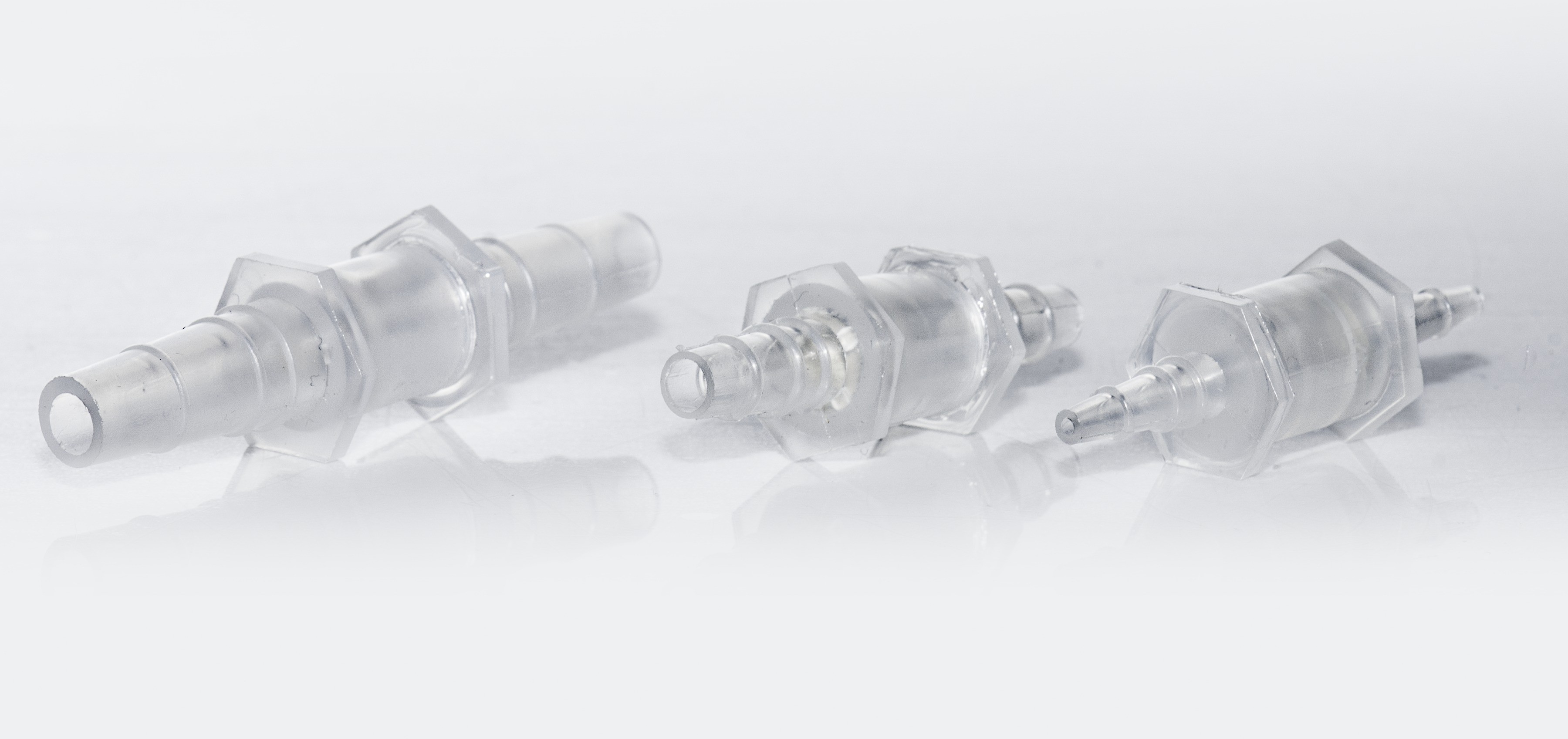

Check Valves - PP

Stops Reverse Flow of Liquid When Pressure Is Interrupted

Polypropylene plastic valve with neoprene valve disk stops reverse flow of liquid when pressure is interrupted.
Useful when connecting a vacuum line to a filter flask
Recommended maximum pressure 20psi (1034 Torr)
Autoclavable
Catalog No.: Overall Length Length Tapered End Diameter Tapered End In Diameter Tapered End Out Quantity / Pack
H19715-0000 60mm (2⅜") 19mm (¾”) 3.1 to 6.4mm (⅛ to ¼") 3.1 to 6.4mm (⅛ to ¼") 6
H19716-0000 60mm (2⅜") 19mm (¾”) 6.4 to 9.5mm (¼ to ⅜") 6.4 to 9.5mm (¼ to ⅜") 6
H19717-0000 76mm (3") 25mm (1") 9.5 to 12.7mm (⅜ to ½") 9.5 to 12.7mm (⅜ to ½") 6
