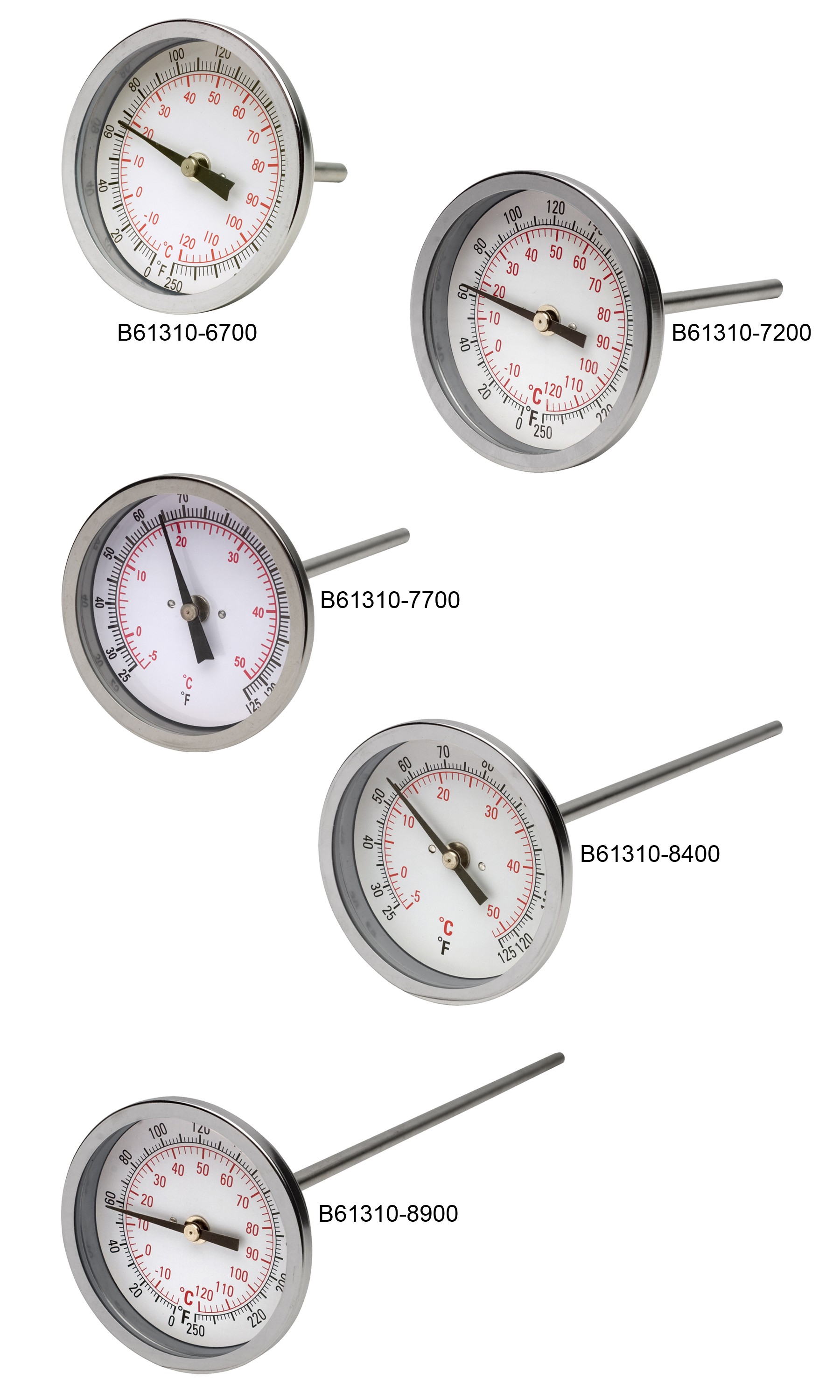

H-B DURAC Bi-Metallic Dial Thermometer with 1/2" NPT Threaded Connection

Double click on above image to view full picture

Zoom Out
Zoom In

H-B DURAC Bi-Metallic Dial Thermometer with 1/2" NPT Threaded Connection

Thermometers feature a 1/2” NPT threaded connection and polycarbonate lens**. External adjustment allows for simple field calibration. For correct temperature reading, stem must be immersed at least 50mm (2”) in liquids and 100mm in gases (4”). Each thermometer features stainless steel case and stem and is individually packaged with a multi-language (English, French, German, Italian, Portuguese and Spanish) Statement of Test and Calibration.
** B61310-9400 and B61310-9500 feature a glass lens.
Image: CA Prop 65 Warning  WARNING:  Cancer and Reproductive Harm  www.P65Warnings.ca.gov
Catalog No.: H-B No. Range Divisions Accuracy Dial Size Quantity / Pack

Stem Length: 62mm (2.4”)
B61310-6700 9/5212 -20/120°C (0/250°F) 2 0.02 75mm (3”) 1
B61310-6800 21605 0/50°C (25/125°F) 1 0.02 75mm (3”) 1
B61310-6900 21610 10/150°C (50/300°F) 1°C; 2°F 0.02 75mm (3”) 1
B61310-7000 21615 10/260°C (50/500°F) 1°C; 2°F 0.02 75mm (3”) 1

Stem Length: 106mm (4.2”)
B61310-7100 21640 -40/50°C (-40/120°F) 2 0.02 75mm (3”) 1
B61310-7200 21620 -20/120°C (0/250°F) 2 0.02 75mm (3”) 1
B61310-7300 21625 0/50°C (25/125°F) 1 0.02 75mm (3”) 1
B61310-7400 21630 10/150°C (50/300°F) 1°C; 2°F 0.02 75mm (3”) 1
B61310-7500 21635 10/260°C (50/500°F) 5 0.02 75mm (3”) 1

Stem Length: 150mm (5.9”)
B61310-7600 9/5612 -20/120°C (0/250°F) 1°C; 2°F 0.02 75mm (3”) 1
B61310-7700 21650 0/50°C (25/125°F) 1 0.02 75mm (3”) 1
B61310-7800 21655 10/150°C (50/300°F) 1°C; 2°F 0.02 75mm (3”) 1
B61310-7900 9/5626 10/260°C (50/500°F) 5 0.02 75mm (3”) 1
B61310-8000 21665 70/400°C (150/750°F) 5°C; 10°F 0.02 75mm (3”) 1

Stem Length: 203mm (8”)
B61310-8700 21695 60/400°C (150/750°F) 5°C; 10°F 0.02 75mm (3”) 1

Stem Length: 225mm (8.9”)
B61310-8100 21670 -40/50°C (-40/120°F) 2 0.02 75mm (3”) 1
B61310-8200 9/5120 -20/120°C (0/250°F) 1°C; 2°F 0.02 75mm (3”) 1

Stem Length: 255mm (10”)
B61310-8300 21675 -20/120°C (0/250°F) 1°C; 2°F 0.02 75mm (3”) 1
B61310-8400 21680 0/50°C (25/125°F) 1 0.02 75mm (3”) 1
B61310-8500 21685 10/150°C (50/300°F) 1°C; 2°F 0.02 75mm (3”) 1
B61310-8600 21690 10/260°C (50/500°F) 5 0.02 75mm (3”) 1

Stem Length: 300mm (12”)
B61310-8800 21900 200/1000°F 5 0.02 75mm (3”) 1
B61310-8900 21700 -20/120°C (0/250°F) 2 0.02 75mm (3”) 1
B61310-9000 21710 0/50°C (25/125°F) 1 0.02 75mm (3”) 1
B61310-9100 9/5150 10/150°C (50/300°F) 1°C; 2°F 0.02 75mm (3”) 1
B61310-9200 21720 10/260°C (50/500°F) 5 0.02 75mm (3”) 1
B61310-9300 21725 70/400°C (150/750°F) 5°C; 10°F 0.02 75mm (3”) 1

Stem Length: 610mm (24”)
B61310-9400 9/5200 0/200°F 2 0.02 75mm (3”) 1
B61310-9500 9/5030 50/300°F 2 0.02 75mm (3”) 1
