H-B DURAC Bi-Metallic Dial Thermometer

Double click on above image to view full picture

Zoom Out
Zoom In

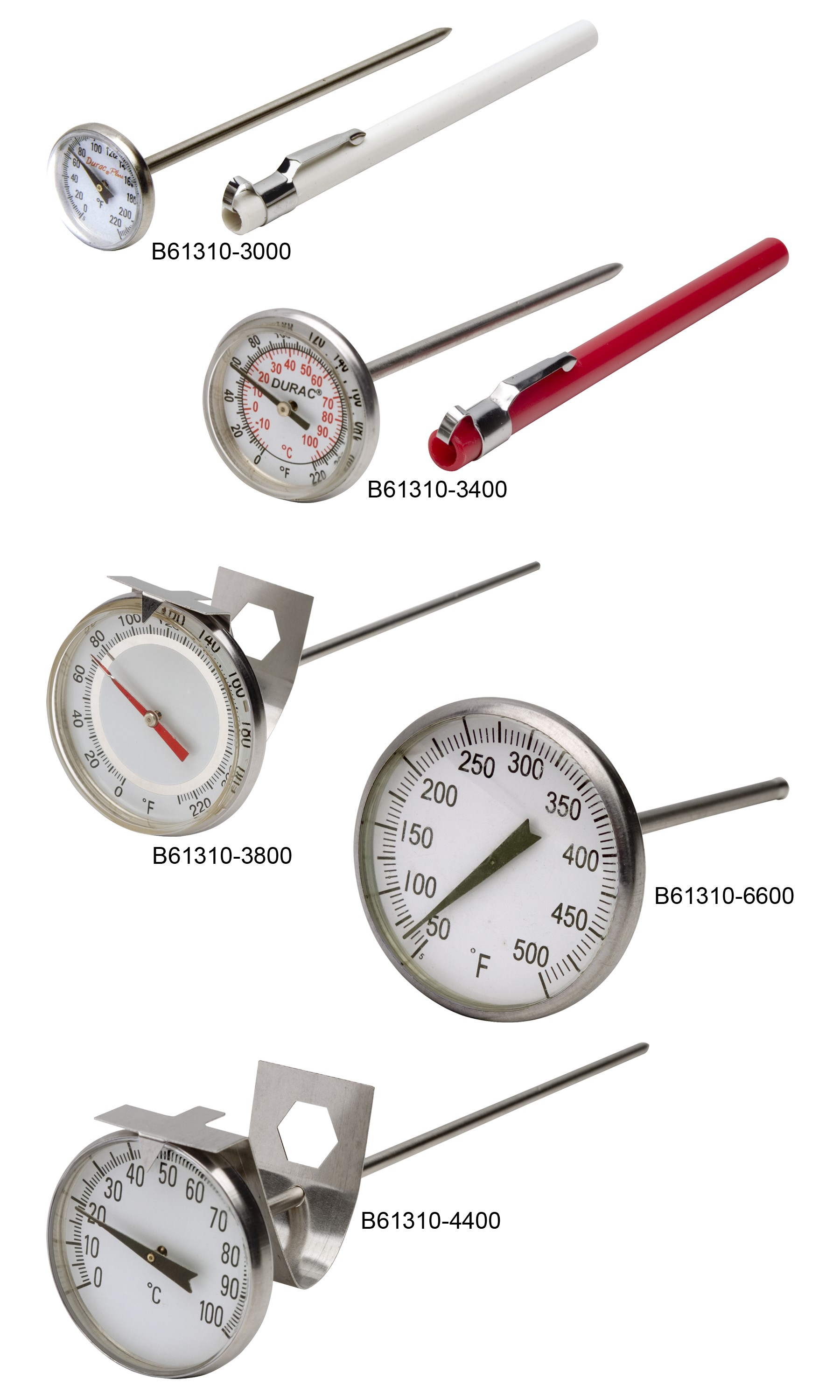

H-B DURAC Bi-Metallic Dial Thermometer

Minimum immersion is 50mm (2”) in liquids or 100mm (4”) in gases. External adjustment nut allows for simple field calibration. Thermometers feature polycarbonate lens and probe cover with pocket clip*. Each thermometer features accuracy to 1%, stainless steel case and stem* and is individually packaged with a multi-language (English, French, German, Italian, Portuguese and Spanish) Statement of Test and Calibration.
44mm (1.7”) and 50mm (2”) dial sizes feature a beaker clip with built in adjustment tool in place of the probe cover with pocket clip.
Image: CA Prop 65 Warning  WARNING:  Cancer and Reproductive Harm  www.P65Warnings.ca.gov
Catalog No.: H-B No. Range Divisions Accuracy Stem Length Quantity / Pack

Dial Size: 25mm (1")
B61310-2500 9/1515 -40/70°C 1 0.01 125mm (4.9”) 1
B61310-2600 9/1511 -10/110°C 1 0.01 125mm (4.9”) 1
B61310-2700 9/1150 0/150°C 2 0.01 125mm (4.9”) 1
B61310-2800 9/1525 0/250°C 5 0.01 125mm (4.9”) 1
B61310-2900 9/1516 -40/160°F 2 0.01 125mm (4.9”) 1
B61310-3000 9/1522 0/220°F 2 0.01 125mm (4.9”) 1
B61310-3100 9/1512 25/125°F 1 0.01 125mm (4.9”) 1
B61310-3200 9/1555 50/550°F 5 0.01 125mm (4.9”) 1

Dial Size: 33mm (1.3")
B61310-3300 9/2120 -40/70°C (-40/160°F) 2 0.02 125mm (4.9”) 1
B61310-3400 9/2125 -10/110°C (0/220°F) 2°C; 2°F 0.02 125mm (4.9”) 1
B61310-3500 9/2115 -5/50°C (25/125°F) 1 0.02 125mm (4.9”) 1

Dial Size: 44mm (1.7")
B61310-6600 21596 50/500°F 5 0.02 75mm (3”) 1
B61310-3600 9/3516 -40/160°F 2 0.02 125mm (4.9”) 1
B61310-3700 9/1550 0/180°C 2 0.02 125mm (4.9”) 1
B61310-3800 9/3522 0/220°F 2 0.02 125mm (4.9”) 1
B61310-3900 9/3125 25/125°F 1 0.02 125mm (4.9”) 1
B61310-4000 9/3840 -100/40°C 2 0.02 200mm (7.9”) 1
B61310-4100 9/3810 -50/100°C 2 0.02 200mm (7.9”) 1
B61310-4200 9/3811 -10/110°C 1 0.02 200mm (7.9”) 1
B61310-4300 9/3805 0/50°C 1 0.02 200mm (7.9”) 1
B61310-4400 9/3800 0/100°C 1°C ±2°C 200mm (7.9”) 1
B61310-4500 9/3815 0/150°C 2 0.02 200mm (7.9”) 1
B61310-4600 9/3825 0/250°C 2 0.02 200mm (7.9”) 1
B61310-4700 9/3801 -100/100°F 2 0.02 200mm (7.9”) 1
B61310-4800 9/3816 -40/160°F 2 0.02 200mm (7.9”) 1
B61310-4900 9/3818 0/180°F 2 0.02 200mm (7.9”) 1
B61310-5000 9/3822 0/220°F 2 0.02 200mm (7.9”) 1
B61310-5100 9/3812 25/125°F 2 0.02 200mm (7.9”) 1
B61310-5200 9/3821 50/250°F 2 0.02 200mm (7.9”) 1
B61310-5300 9/3830 50/300°F 5 0.02 200mm (7.9”) 1
B61310-5400 9/3804 50/400°F 5 0.02 200mm (7.9”) 1
B61310-5500 9/3850 50/500°F 5 0.02 200mm (7.9”) 1
B61310-5600 9/4410 -10/110°C 1 0.02 483mm (19”) 1

Dial Size: 50mm (2")
B61310-5700 9/4812 -10/110°C (0/220°F) 1°C; 2°F 0.02 200mm (7.9”) 1
B61310-5800 9/4852 -5/50°C (25/125°F) 1 0.02 200mm (7.9”) 1
B61310-5900 9/4823 15/150°C (50/300°F) 1°C; 2°F 0.02 200mm (7.9”) 1
B61310-6000 9/4810 -40/70°C 1 0.02 200mm (7.9”) 1
B61310-6100 9/4811 -10/110°C 1 0.02 200mm (7.9”) 1
B61310-6200 9/4850 0/250°C 5 0.02 200mm (7.9”) 1
B61310-6300 9/4822 0/220°F 2 0.02 200mm (7.9”) 1
B61310-6400 9/4825 25/125°F 1 0.02 200mm (7.9”) 1
B61310-6500 9/4855 50/550°F 2 0.02 200mm (7.9”) 1
