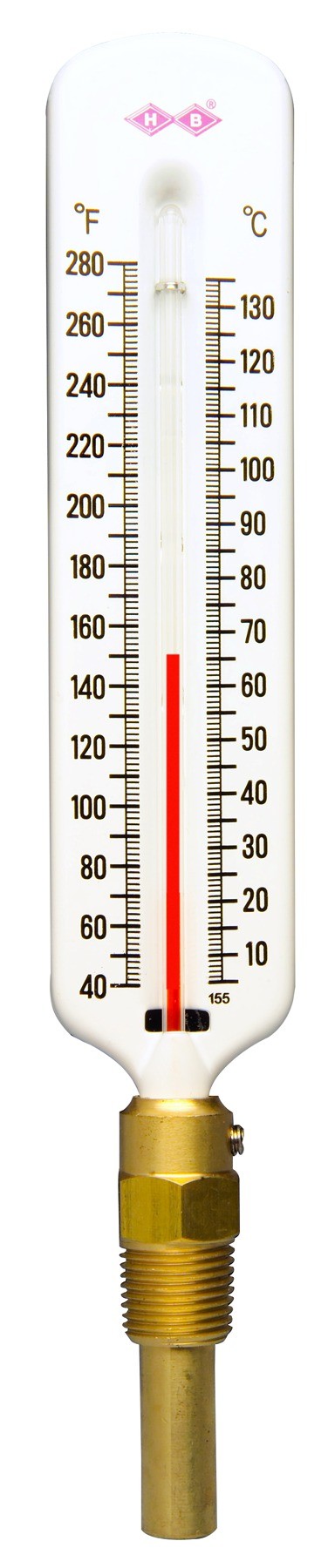

H-B DURAC Hot Water/Refrigerant Line Liquid-In-Glass Thermometers; Organic Liquid Fill

Double click on above image to view full picture

Zoom Out
Zoom In
Click Here For Video
See it in action

H-B DURAC Hot Water/Refrigerant Line Liquid-In-Glass Thermometers; Organic Liquid Fill

For use in solar heating systems, residential and commercial boilers, swimming pool heaters or refrigeration equipment. External adjustment nut allows for simple thermometer recalibration. Choose from brass or steel well and straight or angle form. Includes 1/2” NPT threaded connection and contains red organic liquid against white back glass. Measures 50W x 125mmH (2 x 4.9).
An SDS is available for products within this family, and can be viewed by clicking the SDS button on individual product pages.



Need custom calibration for a liquid-in-glass thermometer? Click Here



Image: CA Prop 65 Warning  WARNING:  Cancer  www.P65Warnings.ca.gov
Catalog No.: H-B No. Range Divisions Accuracy Well Type Quantity / Pack

Straight
B60802-0000 9485 5 to 120°C (40 to 260°F) 1°C; 2°F 2-1-2% Brass Well 1
B60807-0100 9487 5 to 120°C (40 to 260°F) 1°C; 2°F 2-1-2% Steel Well 1

Angle
B60807-0000 9486 5 to 120°C (40 to 260°F) 1°C; 2°F 2-1-2% Brass Well 1
B60807-0200 9488 5 to 120°C (40 to 260°F) 1°C; 2°F 2-1-2% Steel Well 1
