Lab Companion Cabinet Style Vacuum Desiccators

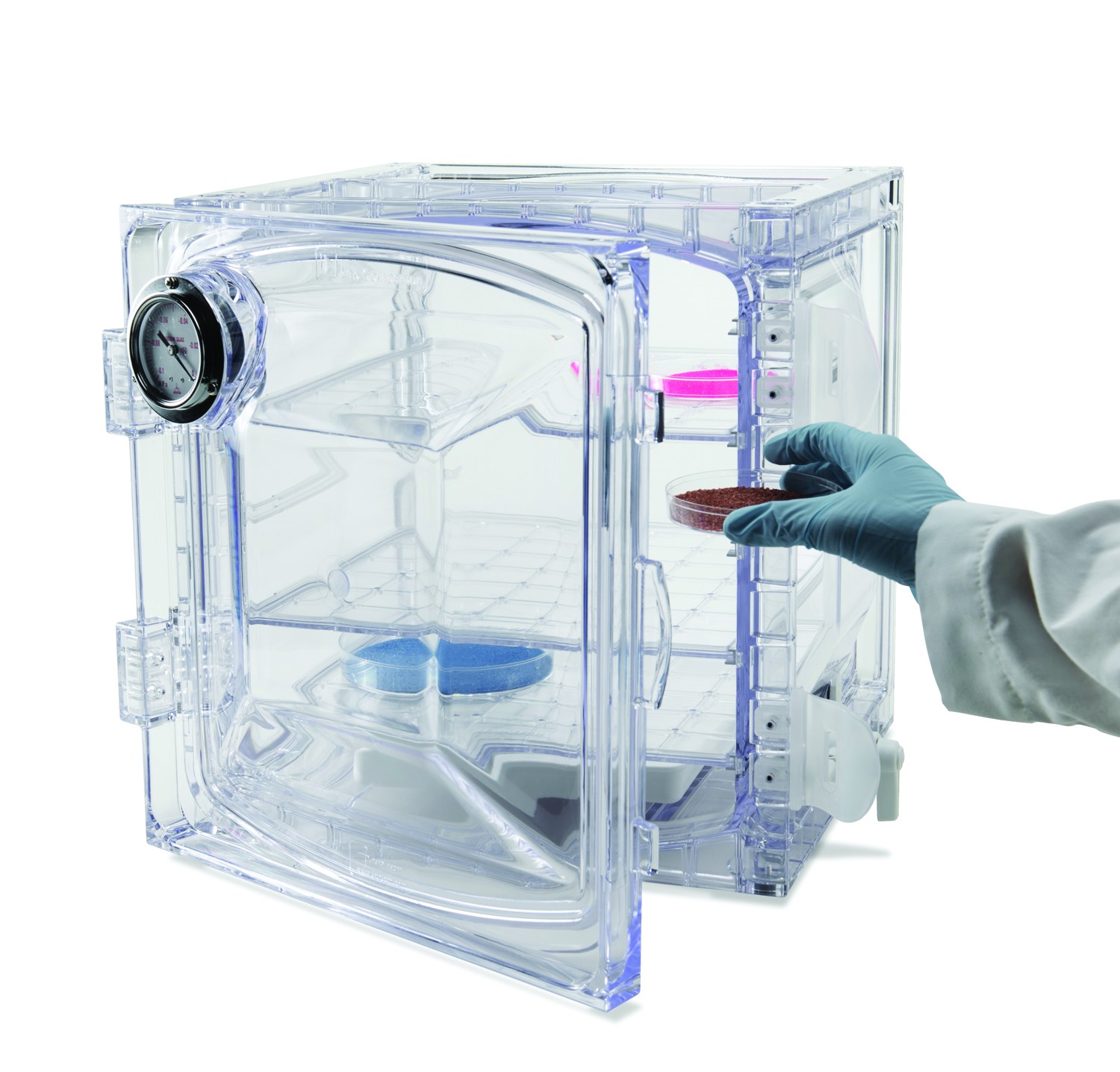

Outstanding Vacuum Sustainment in a Space Maximizing Cube

These high-quality vacuum desiccators stay gastight allowing reliable dry storage or experiments over extended periods. Able to maintain 29in.-Hg vacuum for over 72 hours at room temperature, they provide vacuum integrity resulting in lower maintenance and greater peace of mind.
Single piece molded design (except the door) enables outstanding vacuum capability with virtually no leakage and exceptional durability
Cabinet style provides maximum useable space and is stackable
Viton® 3-way valve offers consistent and uniform vacuum draw, vacuum release, or gas exchange
Analog vacuum gauge in front door allows vacuum level checking at a glance
Transparent polycarbonate construction is durable, easy-to-clean, chemical-resistant, and allows quick visualization of the desiccator contents
Amber tinted UV blocking models block 100% of UVA, B, and C light to minimize damages or discoloration of light-sensitive samples
Hinged door allows easy access; built in locking tabs secure the door when not under vacuum
Perforated shelves can be removed or repositioned to accommodate various storage needs (additional shelves sold separately)
Built-in ports permit attachment of up to 3 additional valves (sold separately)
Includes desiccant tray (desiccants sold separately)
Use with any vacuum with free air capacity of 1.5 cubic feet per minute (CFM) ft or greater
Eight models to choose from; 11, 23, 35, and 45 liter internal volume in clear or UV blocking amber
Image: CA Prop 65 Warning  WARNING:  Cancer and Reproductive Harm  www.P65Warnings.ca.gov
Catalog No.: Internal Volume Interior Dimensions (W X D X H) Exterior Dimensions (W X D X H) Door Opening (W X H) Max Wt/ Shelf Shelves Incl/max Weight Quantity / Pack

Clear
F42400-4001 0.4 cu. ft. / 11L 24.8 x 25.4 x 23.8cm (9¾ x 10 x 9⅜") 32.2 x 28.5 x 27.1cm (12⅝ x 11¼ x 10⅝”) 20.8 x 23.8cm (8⅛ x 9⅜”) 3kg (6.6lb) 2 / 4 4.2kg (9.25lb) 1
F42400-4021 0.8 cu. ft. / 23L 34.6 x 36.5 x 24.6cm (13⅝ x 14⅜ x 9¾") 42.0 x 39.7 x 28.1cm (16½ x 15⅝ x 11”) 29.5 x 24.5cm (11⅝ x 9⅝”) 5kg (11lb) 2 / 4 8.2kg (18lb) 1
F42400-4011 1.2 cu. ft. / 35L 35.5 x 37.5 x 34.5cm (14 x 14¾ x 13⅝") 42.0 x 39.7 x 38.1cm (16½ x 15⅝ x 15”) 29.5 x 34.5cm (11⅝ x 13⅝”) 5kg (11lb) 3 / 5 10.8kg (23.75lb) 1
F42400-4031 1.6 cu. ft. / 45L 35.5 x 37.4 x 44.5cm (14 x 14¾ x 17½") 42.0 x 39.7 x 49.1cm (16½ x 15⅝ x 19⅜”) 29.5 x 44.5cm (11⅝ x 17½”) 5kg (11lb) 3 / 6 12.2kg (26.75lb) 1

UV Blocking Amber
F42400-4101 0.4 cu. ft. / 11L 24.8 x 25.4 x 23.8cm (9¾ x 10 x 9⅜") 32.2 x 28.5 x 27.1cm (12⅝ x 11¼ x 10⅝”) 20.8 x 23.8cm (8⅛ x 9⅜”) 3kg (6.6lb) 2 / 4 4.2kg (9.25lb) 1
F42400-4121 0.8 cu. ft. / 23L 34.6 x 36.5 x 24.6cm (13⅝ x 14⅜ x 9¾") 42.0 x 39.7 x 28.1cm (16½ x 15⅝ x 11”) 29.5 x 24.5cm (11⅝ x 9⅝”) 5kg (11lb) 2 / 4 8.2kg (18lb) 1
F42400-4111 1.2 cu. ft. / 35L 35.5 x 37.5 x 34.5cm (14 x 14¾ x 13⅝") 42.0 x 39.7 x 38.1cm (16½ x 15⅝ x 15”) 29.5 x 34.5cm (11⅝ x 13⅝”) 5kg (11lb) 3 / 5 10.8kg (23.75lb) 1
F42400-4131 1.6 cu. ft. / 45L 35.5 x 37.4 x 44.5cm (14 x 14¾ x 17½") 42.0 x 39.7 x 49.1cm (16½ x 15⅝ x 19⅜”) 29.5 x 44.5cm (11⅝ x 17½”) 5kg (11lb) 3 / 6 12.2kg (26.75lb) 1
