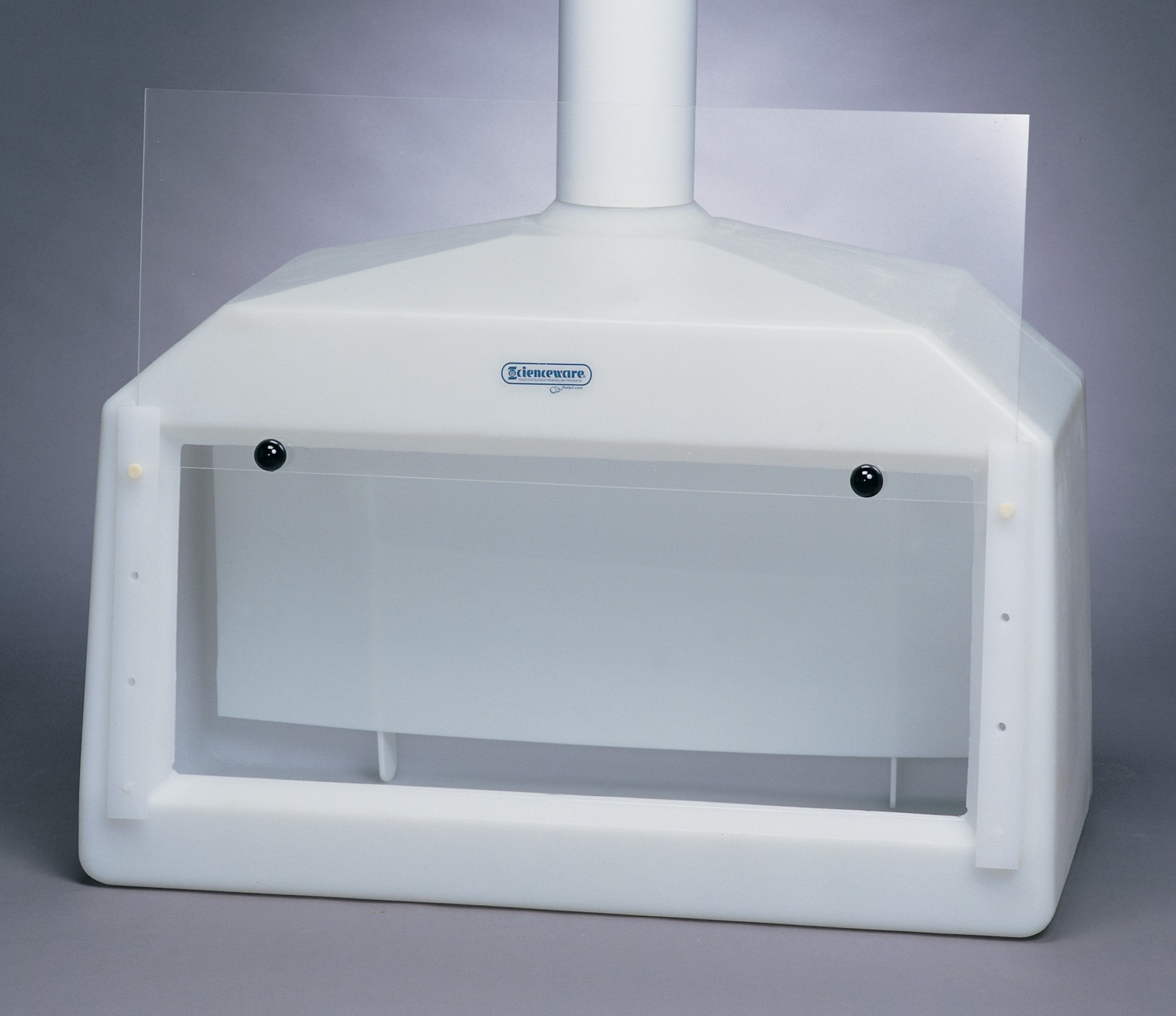

Large Molded Fume Hood with Baffle

Low Turbulence Air flow

This fume hood features a one-piece shell molded of polyethylene plastic with a flat internal baffle and a clear acrylic sash that slides on inside tracks.
Internal baffle across the rear of the shell slopes forward, leaving space beneath for air flow to sweep the deck, and space above in order to efficiently remove airborne vapors
Sash can be set in an open, closed or intermediate position; remains open slightly when in closed position to facilitate continuous air flow
Front opening is 88 x 36cmH (34½ x 14³/₁₆")
Stack O.D.: 15cm (6")
Exhaust system capable of drawing 350 cfm (free air) is recommended
Overall dimensions: 107 x 51 x 76cmH (42 x 20 x 30")
Shipping weight 25.5 kg (56 lbs)
Due to the unspecified nature of their use and the environment in which they are used, glove boxes, glove box gloves and accessory items, and fume hoods may only be returned due to shipping damage reported within two days of receipt, and only if they have not been used. Any returned product that has come in contact with process materials or as advised when receiving a RMA number must include a Decontamination Form which can be downloaded on this web site or by calling Customer Service.



Image: CA Prop 65 Warning  WARNING:  Cancer  www.P65Warnings.ca.gov
Catalog No.: Dimensions (L X W X H) Quantity / Pack
H50000-0004 107 x 51 x 76cm (42 x 20 x 30”) 1
