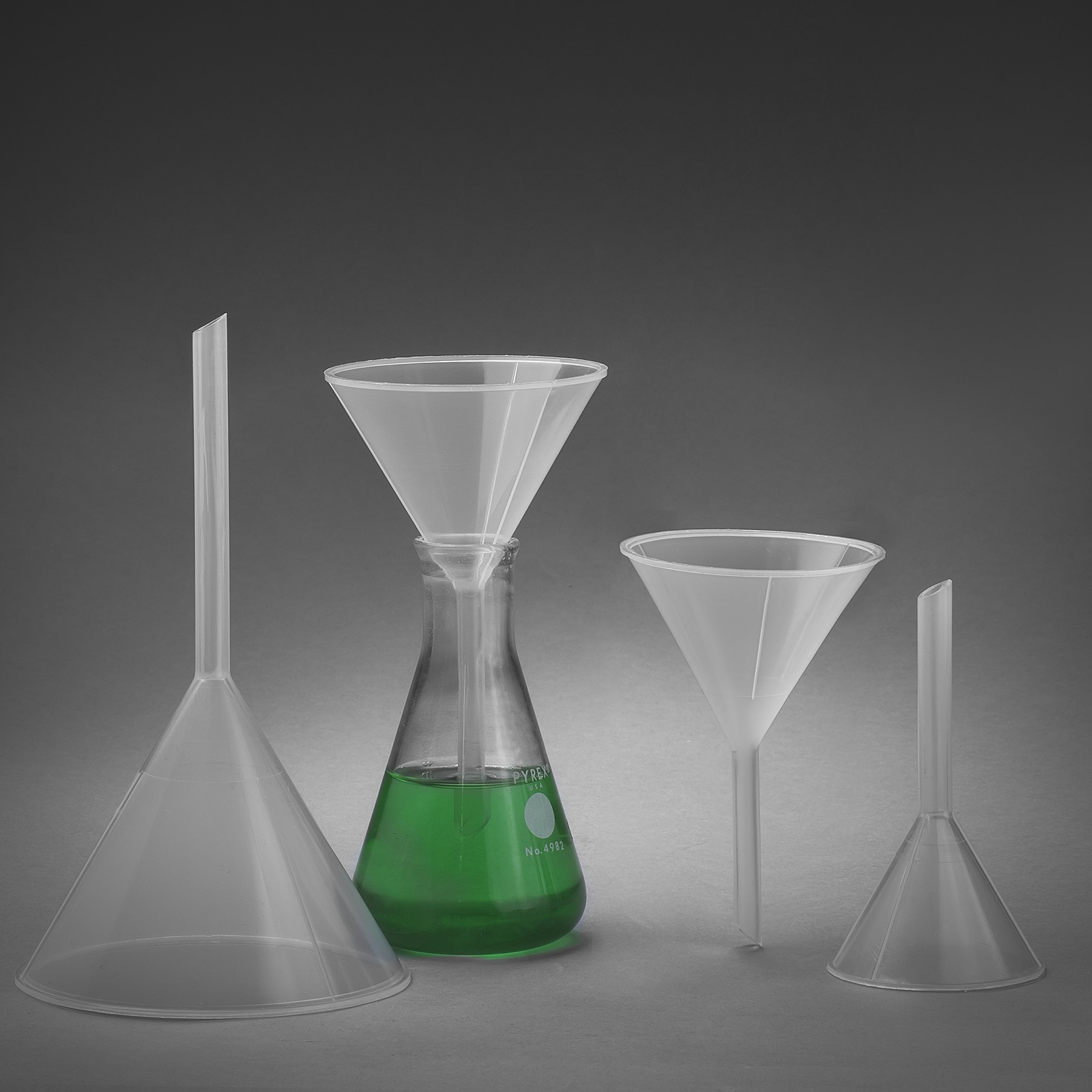

Standard Stem Funnels
Exclusive Design Saves Time
Polypropylene plastic funnels feature an exclusive filter-step internal design for speedier filtrations.
External ribs prevent airlock
Parallel stem measures 8mm O.D.
Steam autoclavable at 121ºC (250ºF)
External ribs prevent airlock
Parallel stem measures 8mm O.D.
Steam autoclavable at 121ºC (250ºF)
| Catalog No.: | Capacity | Overall Height | Stem I.d. | Stem O.d. | Top I.d. | Top O.d. | Stem Length | Takes Filter Paper | Quantity / Pack |
|---|---|---|---|---|---|---|---|---|---|
| F14676-0055 | 32.8ml (1.1oz) | 10.7cm (4³⁄₁₆") | 0.5cm (³⁄₁₆") | 0.9cm (⅜") | 5.5cm (2⅛") | 5.9cm (2⁵⁄₁₆") | 6.5cm (2⁹⁄₁₆") | 90mm | 12 |
| F14676-0065 | 59.1ml (1.97oz) | 11.1cm (4.35") | 0.5cm (³⁄₁₆") | 0.8cm (⁵⁄₁₆") | 6.5cm (2⁹⁄₁₆") | 6.9cm (2¹¹⁄₁₆") | 6.5cm (2⁹⁄₁₆") | 110mm | 12 |
| F14676-0075 | 91.8ml (3.1oz) | 13.2cm (5³⁄₁₆") | 0.5cm (³⁄₁₆") | 0.8cm (⁵⁄₁₆") | 7.5cm (2⅞") | 7.8cm (3¹⁄₁₆") | 7.5cm (2⅞") | 125mm | 6 |
| F14676-0100 | 209ml (7oz) | 18.2cm (7⅛") | 0.5cm (³⁄₁₆") | 0.9cm (⅜") | 10.0cm (3¹⁵⁄₁₆") | 10.5cm (4⅛") | 10.0cm (3¹⁵⁄₁₆") | 185mm | 4 |
