Three Zone Powder Sampler

Extract Samples at 3 Levels from One Container

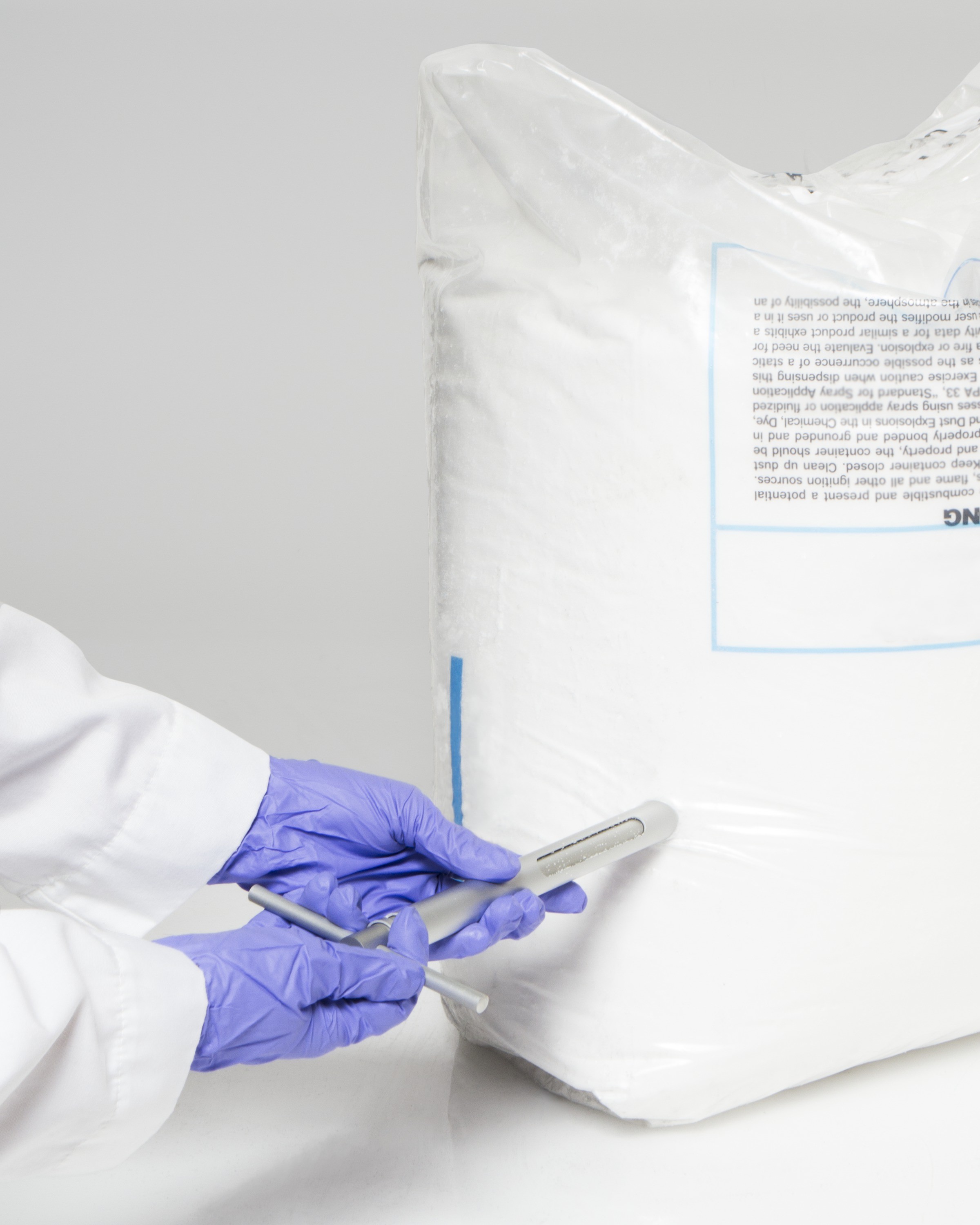

For proper sampling of powders, pellets and other friable materials which may become non-homogeneous in bags, this three zone sampler is invaluable. The steel point is inserted through the bag wall. When the sampler is in deep enough to cover the three cells, a half turn of the handle allows samples to enter. The handle is then returned to the original position, the unit removed, and the three samples transferred into containers for analysis.
Made of 1.9cm (¾”) diameter anodized aluminum with a sharp stainless steel point
Port opening: 7.6cmL x 1cmW (3 x ⅜”); port volume; 9cc
Distance from point to first port: 4.3cm (1¾”); distance between ports: 7.6cm (3”)
Catalog No.: Length Quantity / Pack
H37829-0000 56cm (22”) 1
