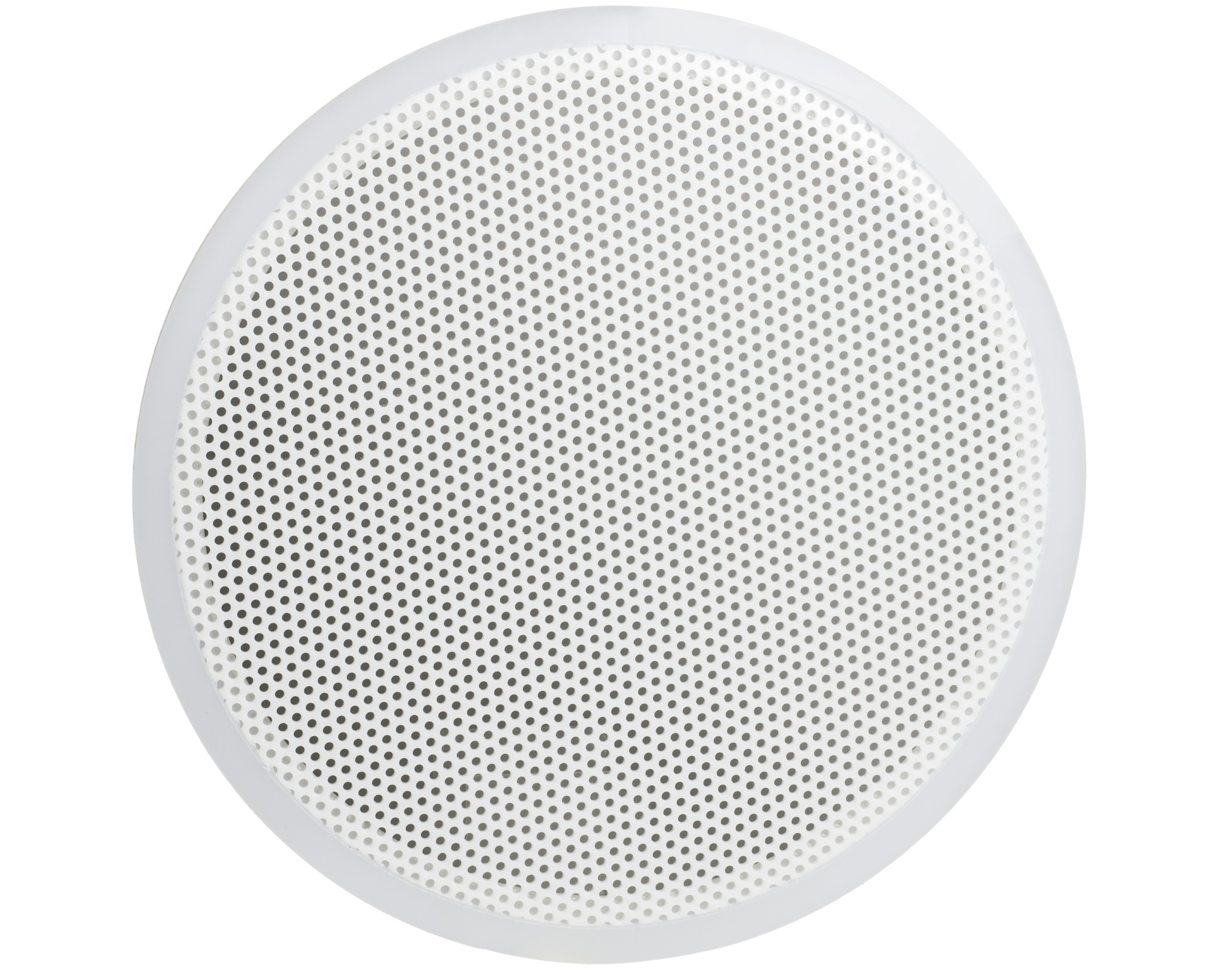

Bel-Art Polyethylene Perforated Filter Plate; for 18 in. I.D. Buchner Funnels

Filter Large Volumes Quickly

Filter large volumes quickly with a polyethylene plastic Table-Top Buchner Funnel using your choice of Fritware® or Perforated filter plate.
Removable hose barbed connector accepts 12.7mm (½") I.D. tube and threads into ¾" NPT bung on the funnel
Fixed or removable Fritware® Porous Filter Plates supported by a multiple ring grid; HDPE, 6.4mm (¼") thick, with a non-porous ring at the periphery of the plate which seals filter paper when used
Fritware® Porous Filter Plates available in two porosities (medium and coarse); medium is 45-90 microns while the coarse is 90-130 microns; use temperature range maximum 52ºC (125ºF), minimum -20ºC (-4ºF)
Fixed or removable Perforated Filter Plates are made of 4.8mm (³/₁₆") thick HDPE with 4.8mm (³/₁₆") perforations on 11mm (⁷/₁₆") centers
Perforated Filter Plates available in two versions (fixed or removable); fixed for coarse filtration or use with a cloth or paper filter; removable for use in precious metals recovery; use temperature range maximum 52ºC (125ºF), minimum -20ºC (-4ºF)
Use the F36820-0118 Funnel Trowel to quickly and efficiently smooth fissures appearing during the filtration process
Note: Truck shipping is required for 36" funnels
Catalog No.: Description Overall Height Rim To Plate Quantity / Pack

18" (45.7cm) Funnel Inside Diameter
H91463-1457 Replacement Perforated Plate (18") 1
