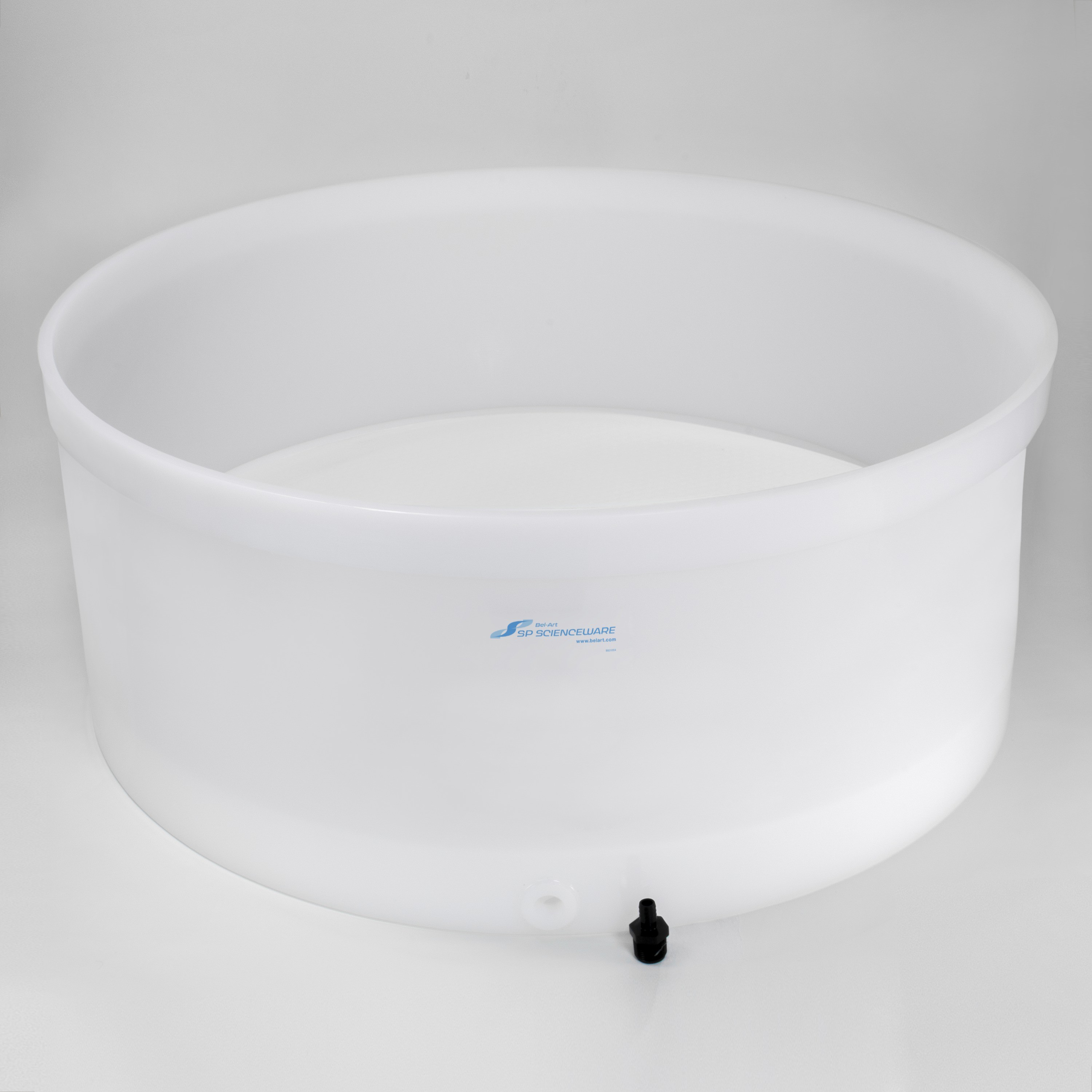

Buchner Table-Top Funnels 36" (91.4cm)

Double click on above image to view full picture

Zoom Out
Zoom In

Buchner Table-Top Funnels 36" (91.4cm)

Filter Large Volumes Quickly

Filter large volumes quickly with a polyethylene plastic Table-Top Buchner Funnel using your choice of Fritware® or Perforated filter plate.
Removable hose barbed connector accepts 12.7mm (½") I.D. tube and threads into ¾" NPT bung on the funnel
Fixed or removable Fritware® Porous Filter Plates supported by a multiple ring grid; HDPE, 6.4mm (¼") thick, with a non-porous ring at the periphery of the plate which seals filter paper when used
Fritware® Porous Filter Plates available in two porosities (medium and coarse); medium is 45-90 microns while the coarse is 90-130 microns; use temperature range maximum 52ºC (125ºF), minimum -20ºC (-4ºF)
Fixed or removable Perforated Filter Plates are made of 4.8mm (³/₁₆") thick HDPE with 4.8mm (³/₁₆") perforations on 11mm (⁷/₁₆") centers
Perforated Filter Plates available in two versions (fixed or removable); fixed for coarse filtration or use with a cloth or paper filter; removable for use in precious metals recovery; use temperature range maximum 52ºC (125ºF), minimum -20ºC (-4ºF)
Use the F36820-0118 Funnel Trowel to quickly and efficiently smooth fissures appearing during the filtration process
Catalog No.: Description I.d. Overall Height Rim To Plate Quantity / Pack
H14623-0000 Funnel with Coarse Porosity Fixed Plate(36") 36" (91.4cm) 14.75" (37.5cm) 12" (30.5cm) 1
H14623-1914 Funnel with Coarse Porosity Removable Plate (36") 36" (91.4cm) 14.75" (37.5cm) 12" (30.5cm) 1
H91462-4091 Replacement Coarse Porous Plate (36") 1
H14625-3536 Funnel with Medium Porosity Fixed Plate (36") 36" (91.4cm) 14.75" (37.5cm) 12" (30.5cm) 1
H14626-3536 Funnel with Medium Porosity Removable Plate (36") 36" (91.4cm) 14.75" (37.5cm) 12" (30.5cm) 1
H91462-4914 Replacement Medium Porous Plate (36") 1
H14630-0000 Funnel with Perforated Fixed Plate (36") 36" (91.4cm) 14.75" (37.5cm) 12" (30.5cm) 1
H14627-1914 Funnel with Perforated Removable Plate (36") 36" (91.4cm) 14.75" (37.5cm) 12" (30.5cm) 1
H91463-1914 Replacement Perforated Plate (36") 1
